316Ti Stainless Steel Sheet

  • Home
  • Stainless Steel 316Ti Sheet

ASTM A240 Type 316Ti Plate and UNS S31635 Coil Supplier

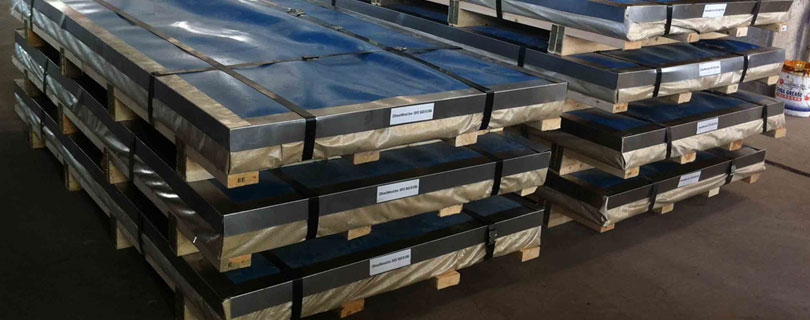

316Ti Stainless Steel Sheet

316Ti Stainless Steel Sheet

Top notch Distributor of WNR 1.4571 Coil, Reknowed SS 316Ti Shim Sheets Stockist

Specification of Stainless Steel 316Ti Sheet

Dimension of UNS S31703 Plate

Chemical Composition of WNR 1.4571 Coil

Mechanical Properties of SS 316Ti Shim Sheets

Physical Properties of 316Ti Stainless Steel Perforated Sheets

Equivalent Grade of 316Ti SS Cold Rolled Plates

Specification of Stainless Steel 316Ti Sheet
ASTM Specification ASTM A240 / ASME SA240
Standard MSRR, AMS, BS, ASTM A240 / ASME SA240
Length & Sizes 1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1250mm x 2500mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 2m, 2.44m, 3m, 36" X 120" or 48" X 144", 4' x 8', Cut to size available
Thickness 0.1mm to 100 mm Thk
Width 10-2500mm
Hardness Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Temper Annealed
Condition Polished on both sides
Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Stock in form of Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate
Value Added Service Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
Dealers & Distributor of SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material
Test Report
  • Raw Materials Certificate
  • EN 10204/3.1B
  • 100% Radiography Test Report
  • High special strength, high melt point
  • Third Party Inspection Report, etc
  • Excellent corrosive resistance, good thermal resistance
  • Customer support after-sales service
  • Strict Control from Raw Material to Finished

Dimension of UNS S31703 Plate

Metric Dimensions

Surface finish Thickness (mm) Width (mm)
2B – Cold rolled, heat treated, pickled, skin passed 0.25–8.0 max. 2032
2D – Cold rolled, heat treated, pickled 0.4–6.35 max. 1524
2E – Cold rolled, heat treated, mechanically descaled 0.4–8.0 max. 2032
2R – Cold rolled, bright annealed 0.25–3.5 max. 1524
2H – Work hardened 0.4–6.35 max. 1524
Polished, brushed 0.5–4.0 max. 1524

Imperial Dimensions

Surface finish Gauge (in) Width (in)
2B – Cold rolled, heat treated, pickled, skin passed 10–24 max. 72*
2D – Cold rolled, heat treated, pickled 12–24 max. 60
BA Mexinox only 18–28 max. 48
Polished (not brushed) 11–24 max. 60
Temper rolled Mexinox only 13–29 max. 48

Chemical Composition of WNR 1.4571 Coil
Grade C Mn Si P S Cr Mo Ni N
316Ti min. – – – – – 16.0 2.00 10.0 –
max. 0.08 2.0 0.75 0.045 0.030 18.0 3.00 14.0 –

Mechanical Properties of SS 316Ti Shim Sheets
Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
316Ti 515 205 35 75 205

Physical Properties of 316Ti Stainless Steel Perforated Sheets
Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity (W/m.K) Specific Heat 0-1000C (J/kg.K) Electrical Resistivity (n.m)
0-1000C 0-3150C 0-5380C at 1000C at 5000C
316Ti 8000 193 17.2 17.8 18.4 16.2 21.5 500 720

Equivalent Grade of 316Ti SS Cold Rolled Plates
Grade UNS No Old British Euronorm GOST Japanese JIS
BS En No AFNOR
316Ti S31635 320S31 X6CrNiMoTi17-12-2 1.4571 Z6CNDT17‐12 08Ch17N13M2T SUS 316Ti

Biggest Supplier of 316Ti Stainless Steel Perforated Sheets, Check 316Ti SS Cold Rolled Plates Sizes, Stockholder of ASTM A240 TP316Ti Chequered Plate
