Copper Nickel 90/10 Sheet

  • Home
  • Cupro Nickel 90/10 Sheet

ASME SB122 90/10 Cu-Ni Plate Supplier

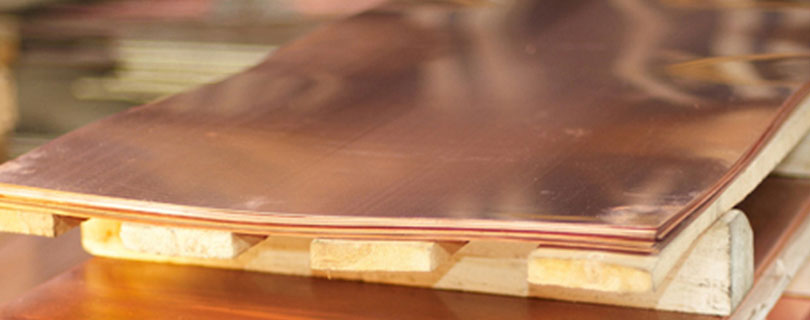

Copper Nickel 90/10 Sheet

Copper Nickel 90/10 Sheet

Reknowed Supplier of 90/10 Cupro Nickel Coil, One of the best ASME SB122 90/10 Cu-Ni Shim Sheets Stockholder

Specification of Cupro Nickel 90/10 Sheet

Dimension of Cu-Ni 90/10 Plate

Chemical Composition of 90/10 Cupro Nickel Coil

Mechanical Properties of ASME SB122 90/10 Cu-Ni Shim Sheets

Equivalent Grade of ASME B122 Copper Nickel 90/10 Cold Rolled Plates

Specification of Cupro Nickel 90/10 Sheet
ASTM Specification ASTM A240 / ASME SA240
Standard MSRR, AMS, BS, ASTM A240 / ASME SA240
Length & Sizes 1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1250mm x 2500mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 2m, 2.44m, 3m, 36" X 120" or 48" X 144", 4' x 8', Cut to size available
Thickness 0.1mm to 100 mm Thk
Width 10-2500mm
Hardness Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Temper Annealed
Condition Polished on both sides
Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Stock in form of Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate
Value Added Service Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
Dealers & Distributor of SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material
Test Report
  • Raw Materials Certificate
  • EN 10204/3.1B
  • 100% Radiography Test Report
  • High special strength, high melt point
  • Third Party Inspection Report, etc
  • Excellent corrosive resistance, good thermal resistance
  • Customer support after-sales service
  • Strict Control from Raw Material to Finished

Dimension of Cu-Ni 90/10 Plate

Metric Dimensions

Surface finish Thickness (mm) Width (mm)
2B – Cold rolled, heat treated, pickled, skin passed 0.25–8.0 max. 2032
2D – Cold rolled, heat treated, pickled 0.4–6.35 max. 1524
2E – Cold rolled, heat treated, mechanically descaled 0.4–8.0 max. 2032
2R – Cold rolled, bright annealed 0.25–3.5 max. 1524
2H – Work hardened 0.4–6.35 max. 1524
Polished, brushed 0.5–4.0 max. 1524

Imperial Dimensions

Surface finish Gauge (in) Width (in)
2B – Cold rolled, heat treated, pickled, skin passed 10–24 max. 72*
2D – Cold rolled, heat treated, pickled 12–24 max. 60
BA Mexinox only 18–28 max. 48
Polished (not brushed) 11–24 max. 60
Temper rolled Mexinox only 13–29 max. 48

Chemical Composition of 90/10 Cupro Nickel Coil
Cu-Ni 90/10 Cu Pb Mn Fe Zn Ni
88.6 min 0.05 max 1.0 max 1.8 max 1 max 9-11 max

Mechanical Properties of ASME SB122 90/10 Cu-Ni Shim Sheets
Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
8.1 g/cm3 1443 °C (2430 °F) Psi – 35,000, MPa – 241 Psi -80,000, MPa -551 30 %

Equivalent Grade of ASME B122 Copper Nickel 90/10 Cold Rolled Plates
STANDARD UNS WERKSTOFF NR.
Cupro Nickel 90/10 C70600 2.0872

UNS C70600 Perforated Sheets Stockist, Top notch ASME B122 Copper Nickel 90/10 Cold Rolled Plates Distributor, Ask for DIN 2.0872 Chequered Plate Price Per Kg
