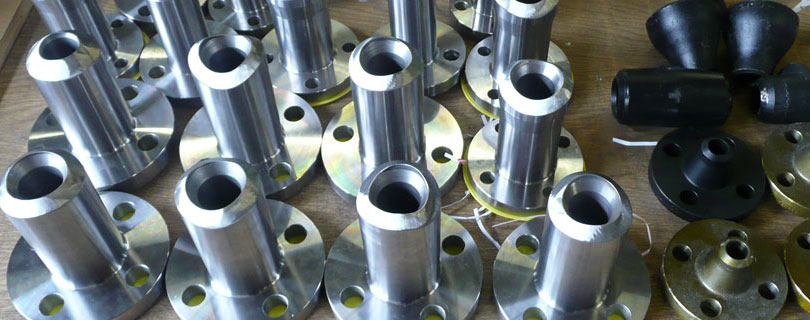

Incoloy 800 Flange

View ASTM B564 UNS N08800 Raised Face Weld Neck Flange Dimensions

Incoloy 800 Flange

Incoloy 800 Flange

One of the best Distributor of DIN 1.4876 Weld Neck Flange, Reknowed ASME SB564 Alloy 800H Reducing Flange Stockist

Specification of Incoloy 800 Flanges

Dimension of UNS N08800 Slip On Flanges

Chemical Composition of DIN 1.4876 Weld Neck Flange

Mechanical Properties of ASME SB564 Alloy 800H Reducing Flange

Equivalent Grade of Alloy 800 Threaded Flanges

Specification of Incoloy 800 Flanges
Size Chart 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Standards API7S-15, API7S-43, API605, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, EN1092
Pressure Rating ANSI 600 LBS, 900 LBS, 150 LBS, 2500 LBS, 300 LBS, 1500 LBS
Pressure Calculation in DIN 16Bar 6Bar 25Bar 40Bar 10Bar / PN10 PN16 PN6 PN25 PN64 PN40
JIS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
UNI 6Bar 10Bar 16Bar 25Bar 40Bar
EN 6Bar 10Bar 16Bar 25Bar 40Bar
Coating Anti-rust Paint, Zinc Plated,Oil Black Paint, Cold and Hot Dip Galvanized, Yellow Transparent
Most common types Forged / Threaded / Screwed / Plate
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production technique
  • Forged, Heat treated and machined
Connect Type/ Flange Face Type Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Raised Face (RF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Special design

As per your drawing

AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations
Test Hydrostatic testing machine, X-ray detector, Direct-reading Spectrograph, UI trasonic flaw detector, Magnetic particle detector
Equipment Bending machine, Pushing Machine,Press machine, electric bevelling machine, Sand-blasting machine etc

Dimension of UNS N08800 Slip On Flanges
Nominal Pipe Size
NPS

(inches)		 Class 300
Diameter of
Flange

(inches)		 No.
of

Bolts 		Diameter of
Bolts

(inches)		 Diameter of
Bolt Holes
(inches)		 Bolt
Circle

(inches)
1/4 3-3/8 4 1/2 0.62 2-1/4
1/2 3-3/4 4 1/2 0.62 2-5/8
3/4 4-5/8 4 5/8 0.75 3-1/4
1 4-7/8 4 5/8 0.75 3-1/2
1-1/4 5-1/4 4 5/8 0.75 3-7/8
1-1/2 6-1/8 4 3/4 0.88 4-1/2
2 6-1/2 8 5/8 0.75 5
2-1/2 7-1/2 8 3/4 0.88 5-7/8
3 8-1/4 8 3/4 0.88 6-5/8
3-1/2 9 8 3/4 0.88 7-1/4
4 10 8 3/4 0.88 7-7/8
5 11 8 3/4 0.88 9-1/4
6 12-1/2 12 3/4 0.88 10-5/8
8 15 12 7/8 1 13
10 17-1/2 16 1 1.12 15-1/4
12 20-1/2 16 1-1/8 1.25 17-3/4
14 23 20 1-1/8 1.25 20-1/4
16 25-1/2 20 1-1/4 1.38 22-1/2
18 28 24 1-1/4 1.38 24-3/4
20 30-1/2 24 1-1/4 1.38 27
24 36 24 1-1/2 1.62 32

Chemical Composition of DIN 1.4876 Weld Neck Flange
Grade C Mn Si Fe S Cr Al-Ti Ni
800 min. – – – 39.5 – 19.0 0.15 30.0
max. 0.1 1.5 1.0 – 0.015 23.0 0.60 35.0
800H min. 0.05 – – 39.5 – 19.0 0.15 30.0
max. 0.1 1.5 1.0 – 0.015 23.0 0.60 35.0
800HT min. 0.06 – – 39.5 – 19.0 0.85/0.25 30.0
max. 0.1 1.5 1.0 – 0.015 23.0 1.20/0.60 35.0

Mechanical Properties of ASME SB564 Alloy 800H Reducing Flange
Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
800-H-HT Psi – 75,000 , MPa – 520 Psi – 30,000 , MPa –205 30 – –

Equivalent Grade of Alloy 800 Threaded Flanges
STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR
Incoloy 800 1.4876 N08800 NCF 800 NA 15 ЭИ670 Z8NC32-21 X10NiCrAlTi32-20 XH32T
Incoloy 800H 1.4958 / 1.4876 N08810 NCF 800H NA 15(H) ЭИ670 Z8NC33-21 X5NiCrAlTi31-20 XH32T
Incoloy 800HT 1.4859 / 1.4876 N08811 NCF 800HT NA 15(HT) ЭИ670 – X8NiCrAlTi32-21 XH32T

Biggest Supplier of 800Ht Incoloy Blind Flange, View Alloy 800 Threaded Flanges Sizes, ASTM B564 Incoloy 800h RTJ Flange Stockholder
