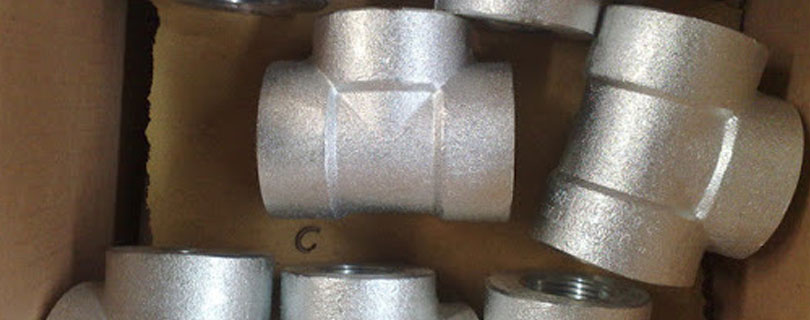

316Ti Stainless Steel Threaded Fittings
| Dimension Specification | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
|---|---|
| Thread | NPT, BSPT, BSPP |
| Type | DN15-DN1200 |
| End | Threaded, Welding, JIC |
| Pressure Rating | Threaded end-2000lb/ 3000lb/ 6000lbs Pipe Fittings |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Types | 90º Elbows, 45º Elbows, Tees, Crosses, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows – Female-Female, Male-Female, Male-Male, Union, Nipples, Couplings, Plugs Fittings |
|
NPS
|
Min Length of Thread |
Outside Dia of Band |
Min WT |
Center to End
|
||
|
B
|
J
|
D
|
G
|
90° A |
45° |
|
|
1/2
|
10.9
|
13.6
|
33
|
3.18
|
28
|
22
|
|
3/4
|
12.7
|
13.9
|
38
|
3.18
|
33
|
25
|
|
1
|
14.7
|
17.3
|
46
|
3.68
|
38
|
28
|
|
1¼
|
17
|
18
|
56
|
3.89
|
44
|
33
|
|
1½
|
17.8
|
18.4
|
62
|
4.01
|
51
|
35
|
|
2
|
19
|
19.2
|
75
|
4.27
|
60
|
43
|
|
2½
|
23.6
|
28.9
|
92
|
5.61
|
76
|
52
|
|
3
|
25.9
|
30.5
|
109
|
5.99
|
86
|
64
|
|
4
|
27.7
|
33
|
146
|
6.55
|
106
|
79
|
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316Ti | min. | – | – | – | – | – | 16.0 | 2.00 | 10.0 | – |
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 3.00 | 14.0 | – | |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316Ti | 515 | 205 | 35 | 75 | 205 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 316Ti | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
| Grade | UNS No | Old British | Euronorm | GOST | Japanese JIS | ||
| BS | En | No | AFNOR | ||||
| 316Ti | S31635 | 320S31 | X6CrNiMoTi17-12-2 | 1.4571 | Z6CNDT17‐12 | 08Ch17N13M2T | SUS 316Ti |
